OIL SEALS TYPE TGF

Self-retaining all-rubber oil seal with a vulcanized flexible metal band to be mounted without clamping plate.

Available also in “split” (open) form. Mainly used for maintenance in applications without any pressure. In this case the clamping plate is recommended.

Garter spring available also encapsulated in resin or other materials for protection from chemical aggressions and dirt.

Download:

FP-ATS_TGF-Info-Data-Sheet_EN-Rev02_30-03-17.pdf

Technical features:
  1. Rubber body
  2. Flexible metal band
  3. Garter spring
  4. Sealing edge made through the cutting process
Materials:
  1. Elastomer:NBR; FKM; HNBR
  2. Metal band: Fe C67 temperato
  3. Garter spring: AISI 302; AISI 316

Types

OIL SEALS TYPE TGF

TGF-B

TGF-WP

TGF-W

TGFP

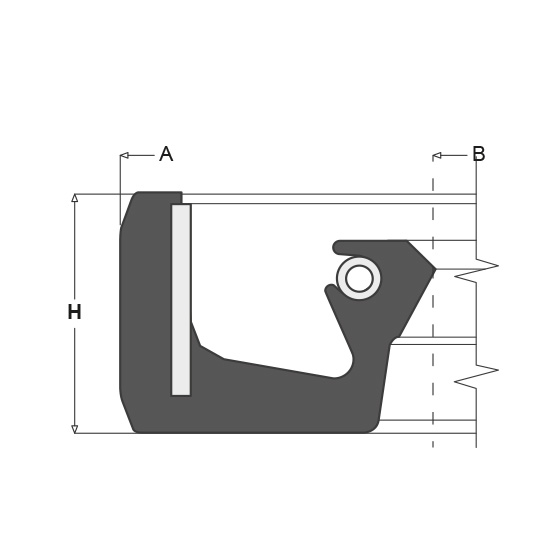

TGF

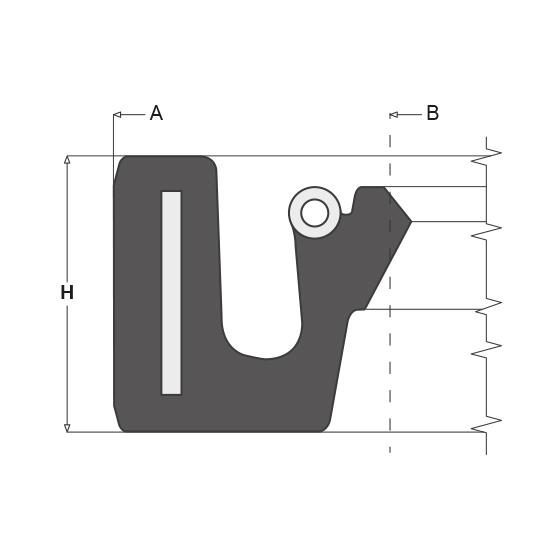

TGFW-MTV

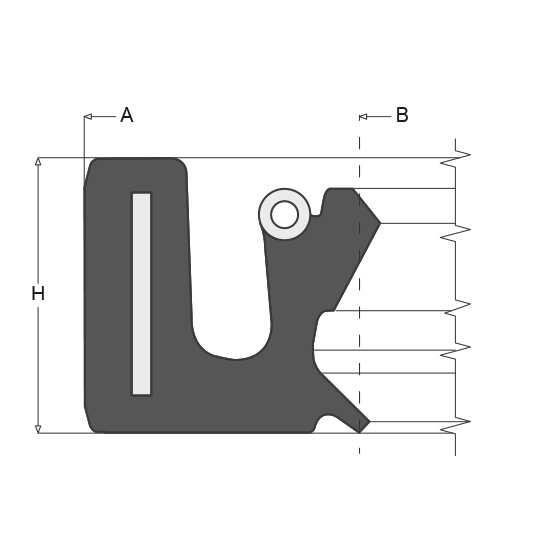

TGFWP-MYV
